Toyota Yaris: Axle And Differential / Steering Knuckle
Components
COMPONENTS

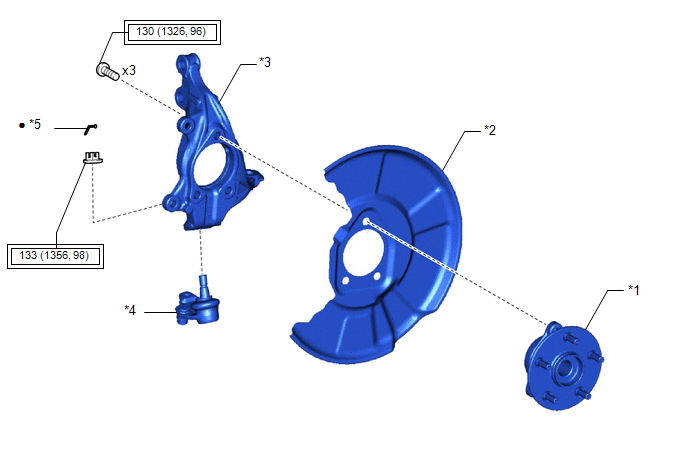

ILLUSTRATION
*1 | FRONT AXLE HUB SUB-ASSEMBLY | *2 | FRONT DISC BRAKE DUST COVER |
*3 | STEERING KNUCKLE | *4 | FRONT LOWER BALL JOINT ASSEMBLY |
*5 | COTTER PIN | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
Removal
REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the steering knuckle removal/installation are shown below.
Necessary Procedures After Parts Removed/Installed/Replaced
Replacement Part or Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
Front wheel alignment adjustment | ECU Data Initialization | Active torque split AWD system |
|
Calibration | -
DTCs are stored
-
Slip indicator light illuminates
-
VSC disabled or malfunctions
|
|
HINT:
-
Use the same procedure for the RH side and LH side.
-
The following procedure is for the LH side.
PROCEDURE
1. REMOVE FRONT AXLE ASSEMBLY
Click here
2. REMOVE FRONT LOWER BALL JOINT ASSEMBLY
Click here
3. REMOVE STEERING KNUCKLE
(a) Secure the front axle assembly between aluminum plates in a vise. NOTICE: Do not overtighten the vise. | |

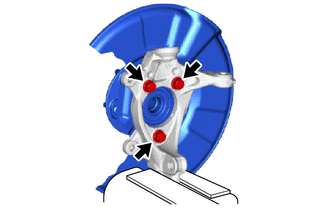

(b) Remove the 3 bolts, front axle hub sub-assembly and front disc brake dust cover from the steering knuckle.
NOTICE:
-
Do not drop the front axle hub sub-assembly.
-
Be careful not to damage the speed sensor rotor or contact surfaces.
-
Do not allow foreign matter to contact the speed sensor rotor or contact surfaces.
Installation
INSTALLATION
CAUTION / NOTICE / HINT
HINT:
-
Use the same procedure for the RH side and LH side.
-
The following procedure is for the LH side.
PROCEDURE
1. INSTALL STEERING KNUCKLE
(a) Secure the steering knuckle between aluminum plates in a vise.
NOTICE:
Do not overtighten the vise.
(b) Install the front axle hub sub-assembly and front disc brake dust cover to the steering knuckle with the 3 bolts.
Torque:
130 N·m {1326 kgf·cm, 96 ft·lbf}
NOTICE:
-
Be careful not to damage the speed sensor rotor or contact surfaces.
-
Do not allow foreign matter to contact the speed sensor rotor or contact surfaces.
2. INSTALL FRONT LOWER BALL JOINT ASSEMBLY
Click here
3. INSTALL FRONT AXLE ASSEMBLY
Click here
ComponentsCOMPONENTS ILLUSTRATION
*1 REAR DRIVE SHAFT OIL SEAL *2 REAR DIFFERENTIAL FILLER PLUG *3 REAR DIFFERENTIAL DRAIN PLUG *4 REAR DIFFERENTIAL CARRIER ASSEMBLY *5 GASKET - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft...
