Toyota Yaris: Keys / Smart Key

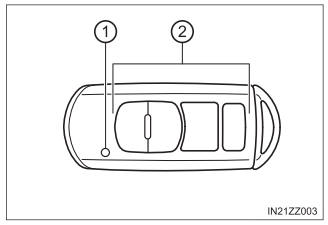

- Operation indicator light
- Operation buttons
The operation indicator light
flashes when the buttons are
pressed.
Lock button
To lock the doors and the liftgate, press the lock button and
the hazard warning lights will
flash once.
With the advanced keyless
function:
A beep sound will be heard
once.
To confirm that all doors and the liftgate have been locked, press
the lock button again within 5 seconds. If they are closed and
locked, the horn will sound.
Unlock button
To unlock the driver’s door,
press the unlock button and the
hazard warning lights will flash
twice.
With the advanced keyless
function:
A beep sound will be heard
twice.
To unlock all doors and the liftgate, press the unlock button again
within three seconds and two more beep sounds will be heard.
Trunk button (4-Door)
To open the trunk lid, press and
hold the trunk button until the
trunk lid opens.
Panic button
If you witness from a distance someone attempting to break
into or damage your vehicle, press and hold the panic button
to activate the vehicle’s alarm. Call emergency services if necessary.
- Turning on the alarm
Pressing the panic button for 1 second or longer
will trigger the alarm for about 2 minutes and 30 seconds, and the following will
occur:
- The horn sounds intermittently.
- The hazard warning lights flash.
- Turning off the alarm
The alarm stops by pressing any button on the key.
Smart Key
- With theft deterrent system: The hazard warning lights flash when the theft deterrent system is armed or
turned off.
Refer to Theft Deterrent System.
- With the advanced keyless function:
A beep sound can be heard for confirmation when the doors and the liftgate
are locked/unlocked using the key. If you prefer, the beep sound can be
turned off. The volume of the beep sound can also be changed.
Refer to Customizable Features.
Use the following procedure to change the setting.
- Switch the ignition off and close all of the doors and the liftgate/trunk
lid.
- Open the driver’s door.
- Within 30 seconds of opening the driver’s door, press and hold the LOCK
button on the key for 5 seconds or longer (All of the doors and the liftgate
are locked and unlocked when the LOCK button on the key is pressed
and held for 5 seconds.).
The beep sound activates at the currently set
volume. The setting
changes each time the LOCK button on the key is pressed and the beep
sound activates at the set volume. (If the beep sound has been set to not
activate, it will not activate.)
- The setting change is completed by doing any one of the following:
- Switching the ignition to ACC or ON.
- Closing the driver’s door.
- Opening the liftgate/trunk lid.
- Not operating the key for 10 seconds.
- Pressing any button except the LOCK button on the key.
- Pressing a request switch.
Lock button
- The doors and the liftgate can be locked by pressing the lock button
while
any other door or the liftgate/trunk lid is open. The hazard warning lights
will
not flash.
- When the lock button is pressed while any door is open and then the door
is
closed, all the doors and the liftgate are locked.
- Confirm that all doors and the liftgate are locked visually or audibly
by use of
the double click.
- Make sure all doors and the liftgate are locked after pressing the
button.
- With theft deterrent system:
When the doors are locked by pressing the lock button on the key while the
theft deterrent system is armed, the hazard warning lights will flash once
to
indicate that the system is armed.
Unlock button
- Switch the ignition off and close all of the doors and the liftgate/trunk
lid.
- Open the driver’s door
- Within 30 seconds of opening the driver’s door, press and hold the
UNLOCK button on the key for 5 seconds or longer (the sound of the
doors locking/unlocking can be heard).
After this, the system switches
the setting each time the UNLOCK button
is pressed (the sound of the doors locking/unlocking can be heard).
- The setting change is completed by doing any one of the following:
- Switching the ignition to ACC or ON.
- Closing the driver’s door.
- Opening the liftgate/trunk lid.
- Not operating the key for 10 seconds.
- Pressing any button except the UNLOCK button on the key.
- Pressing a request switch.
Panic button
The panic button will work whether any door or the liftgate/trunk lid is open
or
closed.
This system uses the key buttons to remotely lock and unlock
the doors and the liftgate, and opens the trunk lid.
The system can start the engine without having to take the key
out of your purse or pocket...
The system operates only when the driver is in the vehicle or within
operational range while the key is being carried.
Starting the Engine
With the advanced keyless function
Without the advanced keyless function
Starting the engine may be possible even if the key is outside of the
vehicle
and extremely close to a door and window, however, always start the engine
from the driver’s seat...
