Toyota Yaris: G16e-gts (intake / Exhaust) / Intercooler
Components
COMPONENTS

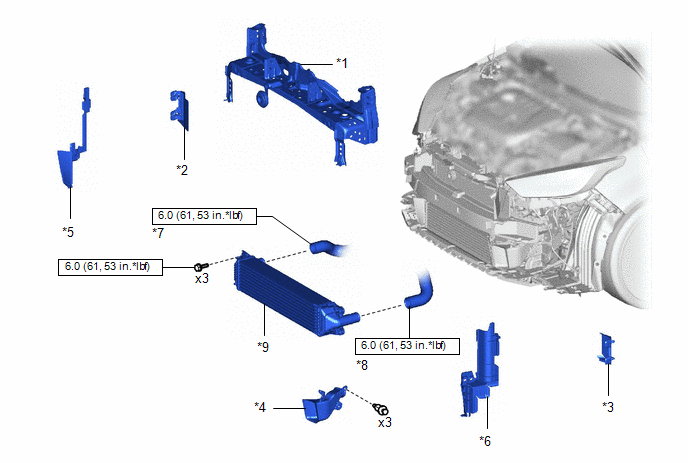

ILLUSTRATION
| *1 | RADIATOR SUPPORT SUB-ASSEMBLY UPPER | *2 | FRONT RADIATOR SIDE AIR GUIDE PLATE RH |
| *3 | FRONT RADIATOR SIDE AIR GUIDE PLATE LH | *4 | COOL AIR INTAKE DUCT |
| *5 | NO. 1 RADIATOR AIR GUIDE RH | *6 | NO. 1 RADIATOR AIR GUIDE LH |
| *7 | NO. 3 AIR HOSE | *8 | NO. 4 AIR HOSE |
| *9 | INTERCOOLER ASSEMBLY | - | - |
 | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
Removal
REMOVAL
PROCEDURE
1. REMOVE RADIATOR SUPPORT SUB-ASSEMBLY UPPER
Click here
2. REMOVE FRONT RADIATOR SIDE AIR GUIDE PLATE RH
Click here
3. REMOVE FRONT RADIATOR SIDE AIR GUIDE PLATE LH
Click here
4. REMOVE COOL AIR INTAKE DUCT
Click here
5. REMOVE NO. 1 RADIATOR AIR GUIDE RH
Click here
6. REMOVE NO. 1 RADIATOR AIR GUIDE LH
Click here
7. DISCONNECT NO. 3 AIR HOSE

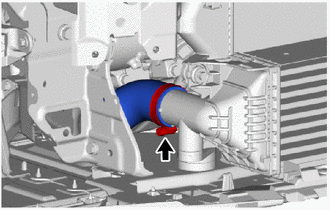

| (a) Loosen the hose clamp and disconnect the No. 3 air hose from the intercooler assembly. |
|
8. DISCONNECT NO. 4 AIR HOSE

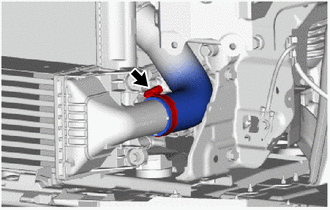

| (a) Loosen the hose clamp and disconnect the No. 4 air hose from the intercooler assembly. |
|
9. REMOVE INTERCOOLER ASSEMBLY
| (a) Remove the 3 bolts and intercooler assembly from the vehicle body. |
|
Installation
INSTALLATION
PROCEDURE
1. INSTALL INTERCOOLER ASSEMBLY
(a) Install the intercooler assembly to the vehicle with the 3 bolts.
Torque:
6.0 N·m {61 kgf·cm, 53 in·lbf}
2. CONNECT NO. 4 AIR HOSE
(a) Connect the No. 4 air hose and tighten the hose clamp.
Torque:
6.0 N·m {61 kgf·cm, 53 in·lbf}
3. CONNECT NO. 3 AIR HOSE
(a) Connect the No. 3 air hose and tighten the hose clamp.
Torque:
6.0 N·m {61 kgf·cm, 53 in·lbf}
4. INSTALL NO. 1 RADIATOR AIR GUIDE RH
Click here
5. INSTALL NO. 1 RADIATOR AIR GUIDE LH
Click here
6. INSTALL COOL AIR INTAKE DUCT
Click here
7. INSTALL FRONT RADIATOR SIDE AIR GUIDE PLATE RH
Click here
8. INSTALL FRONT RADIATOR SIDE AIR GUIDE PLATE LH
Click here
9. INSTALL RADIATOR SUPPORT SUB-ASSEMBLY UPPER
Click here
On-vehicle Inspection
ON-VEHICLE INSPECTION CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced when repairing air leaks in the intake system are shown below...
