Toyota Yaris: Front Seat Side Airbag Assembly / Installation
INSTALLATION
CAUTION / NOTICE / HINT

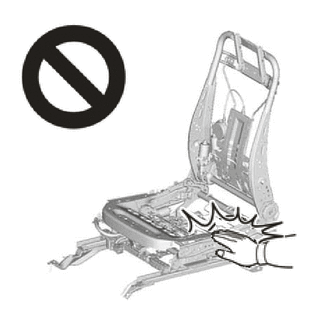

CAUTION:
-
Wear protective gloves. Sharp areas on the parts may injure your hands.
-
There is risk of injury.
HINT:
-
Use the same procedure for the driver side and front passenger side.
-
The procedure listed below is for the driver side.
PROCEDURE
1. INSTALL FRONT SEAT AIRBAG ASSEMBLY

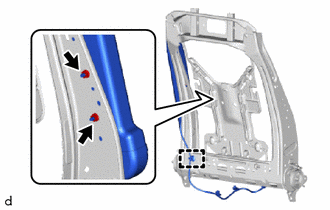

(a) Install the front seat airbag assembly with 2 new nuts. Torque: 5.5 N·m {56 kgf·cm, 49 in·lbf} CAUTION: Do not reuse the nut. | |
(b) Engage the clamp.
2. INSTALL SEPARATE TYPE FRONT SEATBACK COVER WITH PAD
Click here
3. INSTALL FRONT SEAT HEADREST SUPPORT ASSEMBLY
Click here
4. INSTALL FRONT SEATBACK BEZEL (for Sports Seat Type)
Click here
5. INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY
Click here
6. INSTALL FRONT SEAT INNER CUSHION SHIELD
Click here
7. INSTALL FRONT SEAT CUSHION SHIELD
Click here
8. INSTALL SEAT ADJUSTER COVER CAP (for Driver Side)
Click here
9. INSTALL RECLINING ADJUSTER RELEASE HANDLE
Click here
10. INSTALL NO.1 RECLINING HINGE COVER
Click here
11. INSTALL FRONT SEAT VERTICAL ADJUSTER HANDLE (for Driver Side)
Click here
12. INSTALL FRONT SEAT INNER BELT ASSEMBLY
Click here
REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the front seat airbag assembly removal/installation are shown below...
DISPOSAL CAUTION / NOTICE / HINT CAUTION: Before performing pre-disposal deployment of any SRS part, review and closely follow all applicable environmental and hazardous material regulations...
