Toyota Yaris: Rear Suspension Member / Installation
INSTALLATION
PROCEDURE
1. INSTALL HOLE PLUG
(a) Install the 8 hole plugs to the rear suspension member sub-assembly.
2. INSTALL REAR SUSPENSION MEMBER HOLE COVER
(a) Install the 4 rear suspension member hole covers to the rear suspension member sub-assembly.
3. INSTALL REAR NO. 1 DIFFERENTIAL MOUNT CUSHION
Click here
4. INSTALL REAR UPPER CONTROL ARM ASSEMBLY LH
Click here
5. INSTALL REAR UPPER CONTROL ARM ASSEMBLY RH
HINT:
Perform the same procedure as for the LH side.
6. INSTALL REAR SUSPENSION MEMBER SUB-ASSEMBLY

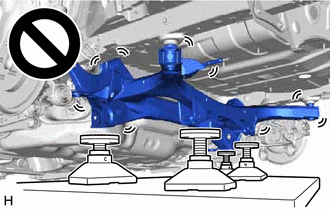

(a) Using an engine lifter and 4 attachments or equivalent tools, support the rear suspension member sub-assembly as shown in the illustration.
*a | Engine Lifter |
*b | Attachment |
| Attachment and Wooden Block Placement Location |
CAUTION:
-
The rear suspension member sub-assembly is a very heavy component. Make sure that it is supported securely.
-
If the rear suspension member sub-assembly is not securely supported, it may drop, resulting in serious injury.
NOTICE:
-
Use attachments and wooden blocks to keep the rear suspension member sub-assembly level.
-
Keep supporting the rear suspension member sub-assembly until the installation has been completed.
(b) Raise the rear suspension member sub-assembly until there is no clearance between the rear suspension member sub-assembly and vehicle body.
(c) Install the rear suspension member sub-assembly with the 2 bolts and 2 nuts.
Torque:
160 N·m {1632 kgf·cm, 118 ft·lbf}
(d) Engage the 3 clamps to install the differential carrier wire harness.
7. INSTALL REAR STABILIZER BAR
Click here
8. INSTALL REAR DIFFERENTIAL CARRIER ASSEMBLY
Click here
9. INSPECT AND ADJUST REAR WHEEL ALIGNMENT
Click here
