Toyota Yaris: Integration Relay / Installation
INSTALLATION
PROCEDURE
1. INSTALL SEMICONDUCTOR POWER INTEGRATION ECU
NOTICE:
- Make sure the connector terminal is free from oil and grease.
- Do not subject the semiconductor power integration ECU to any impact.
- Do not use a semiconductor power integration ECU that has been dropped.
- Do not disassemble the semiconductor power integration ECU.
- Make sure the lever connector is securely connected.

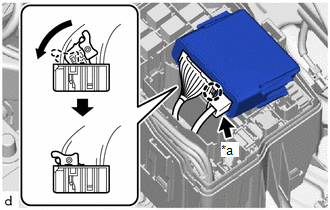

| (a) Connect the connector and pull down the lock lever to engage the claw and lock the connector as shown in the illustration. |
|
(b) Connect the power source connector.

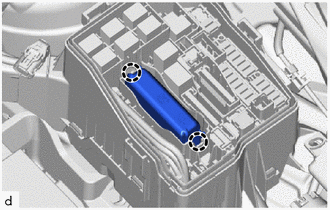

| (c) Engage the claws to install the semiconductor power integration ECU. |
|
2. INSTALL NO. 1 RELAY BLOCK COVER

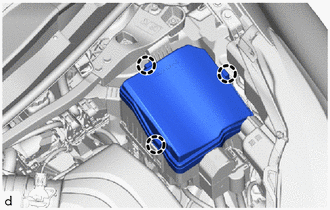

| (a) Engage the claws to install the No. 1 relay block cover. |
|
3. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
Click here
4. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
HINT:
When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.
Click here
