Toyota Yaris: Engine Stop And Start Ecu / Installation
INSTALLATION
CAUTION / NOTICE / HINT
NOTICE:
After performing the update ECU security key procedure, make sure to perform the initialization procedure for when the cable has been disconnected and reconnected to the negative (-) auxiliary battery terminal.
PROCEDURE
1. INSTALL ENGINE STOP AND START ECU

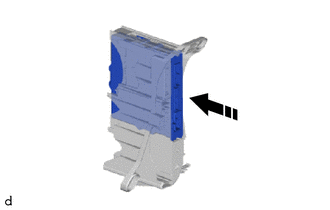

| (a) Engage the 2 claws and install the engine stop and start ECU to the ECU integration box RH. NOTICE: Make sure that the engine stop and start ECU is securely installed. |
|
2. INSTALL ECU INTEGRATION BOX RH
Click here
3. PERFORM REGISTRATION
Click here
Removal
REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed, or replaced during the engine stop and start ECU removal/installation are shown below...
