INSPECTION

PROCEDURE

1. INSPECT REAR SEAT OUTER BELT ASSEMBLY

(a) Before installing the rear seat outer belt assembly, check the ELR function.

NOTICE:

Do not disassemble the retractor.

(1) When the inclination of the retractor is 12° or less, check that the belt can be pulled from the retractor. When the inclination of the retractor is over 27°, check that the belt locks.

If the result is not as specified, replace the rear seat outer belt assembly.

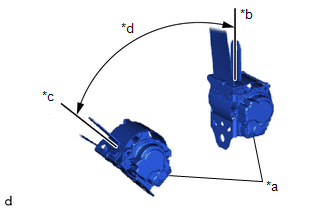

*a	Retractor
*b	Unlock
*c	Lock
*d	27°

Removal

REMOVAL CAUTION / NOTICE / HINT HINT: Use the same procedure for the RH side and LH side. The procedure listed below is for the LH side. PROCEDURE 1...

Installation

INSTALLATION CAUTION / NOTICE / HINT HINT: Use the same procedure for the RH side and LH side. The procedure listed below is for the LH side. PROCEDURE 1...
