Toyota Yaris: Head Restraints / Height Adjustment

Head Restraints

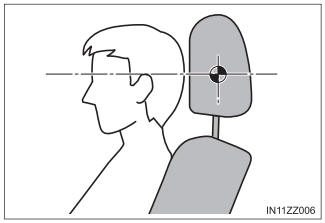

Your vehicle is equipped with head restraints on all outboard seats and the rear center seat. The head restraints are intended to help protect you and the passengers from neck injury...

Removal/Installation

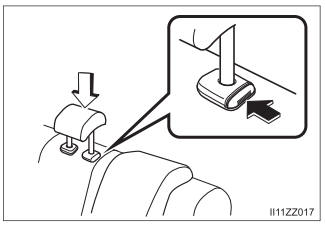

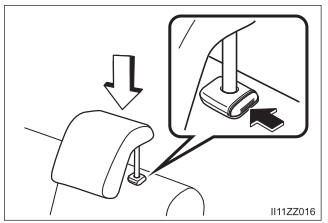

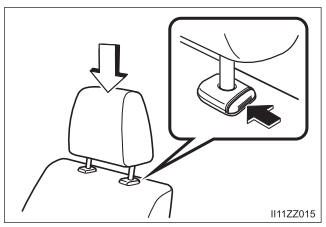

To remove the head restraint, pull it up while pressing the stop-catch. To install the head restraint, insert the legs into the holes while pressing the stop-catch...
