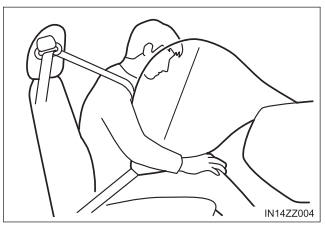

The front passenger air bag is mounted in the front passenger dashboard.

The inflation mechanism for the front passenger air bag is the same as the driver’s air bag, as mentioned above.

For more details about air bag deployment, refer to “SRS Air Bag Deployment Criteria”

Toyota Yaris. Front Passenger Air Bag

In addition, the front passenger air bag is designed to only deploy in accordance with the total seated weight on the front passenger seat. For details, refer to the front passenger occupant classification system.

Driver Air Bag

The driver’s air bag is mounted in the steering wheel. When air bag crash sensors detect a frontal impact of greater than moderate force, the driver’s air bag inflates quickly helping to reduce injury mainly to the driver’s head or chest caused by directly hitting the steering wheel...

Side Air Bags

The side air bags are mounted in the outboard sides of the front seatbacks. When the air bag crash sensors detect a side impact of greater than moderate force, the system inflates the side air bag only on the side in which the vehicle was hit...
