Toyota Yaris: Active Noise Control System / Front Door Left Speaker Circuit Actuator Stuck (B1AAE71)
DESCRIPTION
This DTC is output when a malfunction occurs in the left side front speaker system.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area |
|---|---|---|---|
| B1AAE71 | Front Door Left Speaker Circuit Actuator Stuck | When starting the system from IG OFF → ACC ON, the stereo component equalizer assembly detects a malfunction in the left side front speaker system* |
|
HINT:
*: To prevent false positives, fault monitoring is not performed in the following conditions:
- Auxiliary battery voltage has decreased to 9.5 V or less.
- Less than 3 seconds have elapsed after auxiliary battery voltage returned to normal.

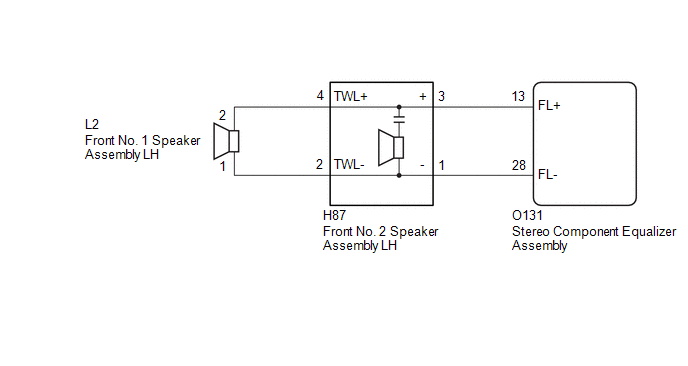

WIRING DIAGRAM
PROCEDURE
| 1. | CLEAR DTC |
(a) Clear the DTCs.
Body Electrical > Active Noise Control > Clear DTCs
|
| 2. | CHECK FOR DTC |
(a) Check for DTCs.
Body Electrical > Active Noise Control > Trouble Codes| Result | Proceed to |
|---|---|
| DTC B1AAE71 is not output | A |
| DTC B1AAE71 is output | B |
| A |
 | USE SIMULATION METHOD TO CHECK |
|
| 3. | CHECK HARNESS AND CONNECTOR (FRONT NO. 2 SPEAKER ASSEMBLY LH - STEREO COMPONENT EQUALIZER ASSEMBLY) |
(a) Disconnect the H87 front No. 2 speaker assembly LH connector.
(b) Disconnect the O131 stereo component equalizer assembly connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| H87-3 (+) - O131-13 (FL+) | Always | Below 1 Ω |
| H87-1 (-) - O131-28 (FL-) | Always | Below 1 Ω |
| H87-3 (+) - Body ground | Always | 10 kΩ or higher |
| H87-1 (-) - Body ground | Always | 10 kΩ or higher |
| NG |
 | REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
| 4. | CHECK HARNESS AND CONNECTOR (FRONT NO. 1 SPEAKER ASSEMBLY LH - FRONT NO. 2 SPEAKER ASSEMBLY LH) |
(a) Disconnect the L2 front No. 1 speaker assembly LH connector.
(b) Disconnect the H87 front No. 2 speaker assembly LH connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| L2-2 - H87-4 (TWL+) | Always | Below 1 Ω |
| L2-1 - H87-2 (TWL-) | Always | Below 1 Ω |
| L2-2 - Body ground | Always | 10 kΩ or higher |
| L2-1 - Body ground | Always | 10 kΩ or higher |
| NG |
 | REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
| 5. | INSPECT FRONT NO. 1 SPEAKER ASSEMBLY LH |
Click here
OK:
Malfunction disappears.
| NG |
 | REPLACE FRONT NO. 1 SPEAKER ASSEMBLY LH |
|
| 6. | INSPECT FRONT NO. 2 SPEAKER ASSEMBLY LH |
Click here
OK:
Malfunction disappears.
| OK |
 | REPLACE STEREO COMPONENT EQUALIZER ASSEMBLY |
| NG |
 | REPLACE FRONT NO. 2 SPEAKER ASSEMBLY LH |
