Toyota Yaris: G16e-gts (engine Mechanical) / Front Crankshaft Oil Seal
Components
COMPONENTS
ILLUSTRATION
| *1 | NO. 1 ENGINE UNDER COVER ASSEMBLY | *2 | ENGINE UNDER COVER RH |
| *3 | FAN AND GENERATOR V BELT | *4 | CRANKSHAFT PULLEY ASSEMBLY |
| *5 | TIMING CHAIN COVER OIL SEAL | *6 | CRANKSHAFT PULLEY SET BOLT |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |
 | N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part | - | - |
| *T1 | 1st: 260 (2651, 192) 2nd: Turn 90° | - | - |
Removal
REMOVAL
PROCEDURE
1. REMOVE FRONT WHEEL RH
Click here
2. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY
Click here
3. REMOVE ENGINE UNDER COVER RH
Click here
4. REMOVE FAN AND GENERATOR V BELT
Click here
5. REMOVE CRANKSHAFT PULLEY
Click here
6. REMOVE TIMING CHAIN COVER OIL SEAL

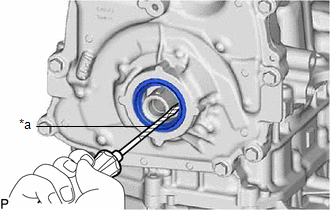

| (a) Using a screwdriver, pry out the timing chain cover oil seal. NOTICE: Do not damage the surface of the timing chain cover oil seal press fit hole or the crankshaft. HINT: Tape the screwdriver tip before use. |
|
Installation
INSTALLATION
PROCEDURE
1. INSTALL TIMING CHAIN COVER OIL SEAL
(a) Apply MP grease to the lip of a new timing chain cover oil seal.
NOTICE:
- Keep the lip free from foreign matter.
- Do not allow MP grease to contact the dust seal.
| (b) Using SST and a hammer, tap in the timing chain cover oil seal. SST: 09223-00010 Standard Depth: 0 to 2 mm (0 to 0.0787 in.) (From the edge of the No. 2 timing chain cover assembly) NOTICE: Do not tap in the timing chain cover oil seal at an angle. |
|
2. INSTALL CRANKSHAFT PULLEY
Click here
3. INSTALL FAN AND GENERATOR V BELT
Click here
4. INSPECT FOR ENGINE OIL LEAK
Click here
5. INSTALL ENGINE UNDER COVER RH
Click here
6. INSTALL NO. 1 ENGINE UNDER COVER ASSEMBLY
Click here
7. INSTALL FRONT WHEEL RH
Click here
Installation
INSTALLATION CAUTION / NOTICE / HINT NOTICE: This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts...
