Toyota Yaris: Theft Deterrent System / Engine Hood Courtesy Switch Circuit
DESCRIPTION
The engine hood courtesy switch is installed together with the hood lock. This switch turns on when the engine hood is closed and turns off when the engine hood is opened.

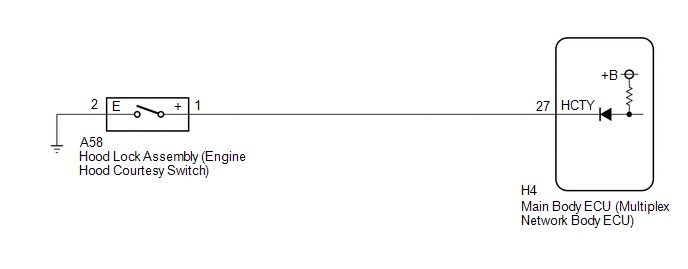

WIRING DIAGRAM
CAUTION / NOTICE / HINT
NOTICE:
If the main body ECU (multiplex network body ECU) is replaced, refer to the Registration.
Click here
PROCEDURE
| 1. | READ VALUE USING GTS (HOOD COURTESY SWITCH STATUS) |
(a) According to the display on the GTS, read the Data List.
Body Electrical > Main Body > Data List| Tester Display | Measurement Item | Range | Normal Condition | Diagnostic Note |
|---|---|---|---|---|
| Hood Courtesy Switch Status | Engine hood courtesy switch | Close or Open | Close: Engine hood closed Open: Engine hood open | - |
| Tester Display |
|---|
| Hood Courtesy Switch Status |
OK:
The indicator on the GTS switches between ON and OFF in accordance with the hood lock assembly (engine hood courtesy switch) status.
| OK |
 | PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE |
|
| 2. | CHECK HARNESS AND CONNECTOR (HOOD LOCK ASSEMBLY [ENGINE HOOD COURTESY SWITCH] - MAIN BODY ECU [MULTIPLEX NETWORK BODY ECU] AND BODY GROUND) |
(a) Disconnect the A58 hood lock assembly (engine hood courtesy switch) connector.
(b) Disconnect the H4 main body ECU (multiplex network body ECU) connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| A58-1 (+) - H4-27 (HCTY) | Always | Below 1 Ω |
| A58-2 (E) - Body ground | Always | Below 1 Ω |
| A58-1 (+) or H4-27 (HCTY) - Other terminals and body ground | Always | 10 kΩ or higher |
| NG |
 | REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
| 3. | INSPECT HOOD LOCK ASSEMBLY (ENGINE HOOD COURTESY SWITCH) |
Click here
| OK |
 | REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| NG |
 | REPLACE HOOD LOCK ASSEMBLY (ENGINE HOOD COURTESY SWITCH) |
