Toyota Yaris: Occupant Detection Sensor / Components
COMPONENTS

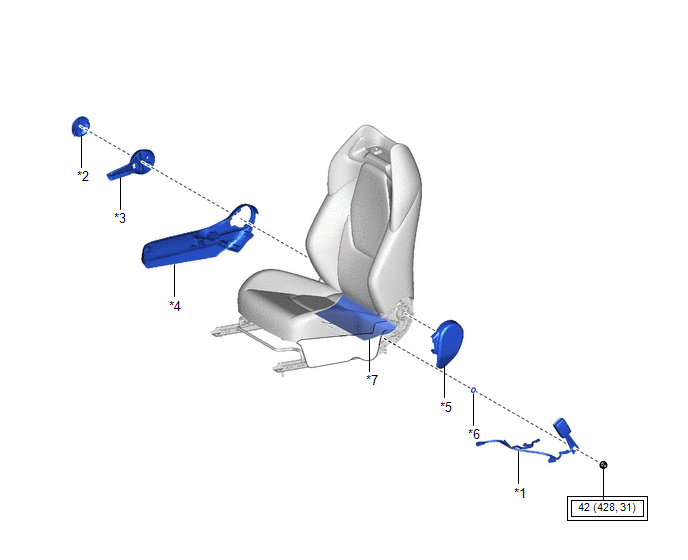

ILLUSTRATION
| *1 | FRONT SEAT INNER BELT ASSEMBLY | *2 | RECLINING HINGE COVER |
| *3 | RECLINING ADJUSTER RELEASE HANDLE | *4 | FRONT SEAT CUSHION SHIELD |
| *5 | FRONT SEAT INNER CUSHION SHIELD | *6 | FRONT SEAT BELT ANCHOR PLATE |
| *7 | SEPARATE TYPE FRONT SEATBACK COVER | - | - |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - | - |

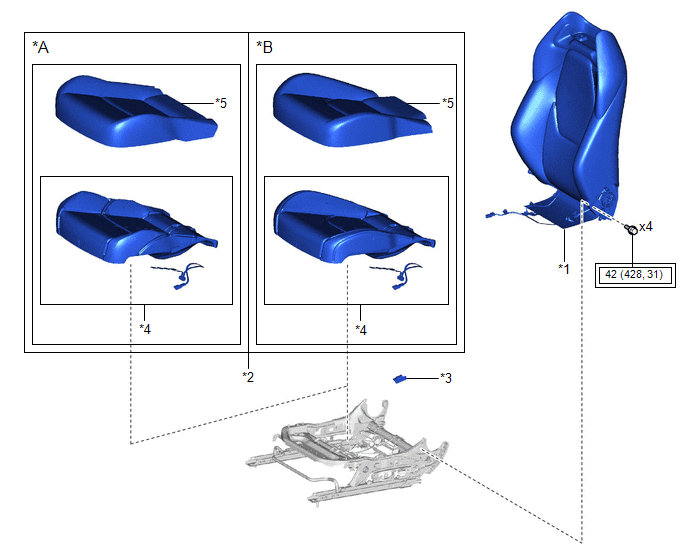

ILLUSTRATION
| *A | for Sporty Seat Type | *B | for Sports Seat Type |
| *1 | SEPARATE TYPE FRONT SEATBACK ASSEMBLY | *2 | SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD |
| *3 | CONNECTOR HOLDER | *4 | OCCUPANT DETECTION SENSOR (SEPARATE TYPE FRONT SEAT CUSHION PAD) |
| *5 | SEPARATE TYPE FRONT SEAT CUSHION COVER | - | - |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - | - |
Removal
REMOVAL CAUTION / NOTICE / HINT
Be sure to read Precaution thoroughly before servicing.
Click here
Wear protective gloves. Sharp areas on the parts may injure your hands...
